Marine Lighting

R-40
Drip Proof – Flood Light

Applications:

  • Loading Areas
  • All Dock Areas
  • Cranes
  • Warehouses
  • Shipyards
  • Many more suitable situations

MODEL 3300
R-40
Drip Proof – Flood Light

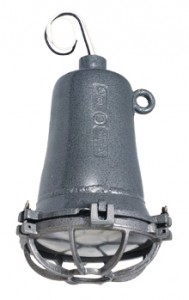

CIRCLE-D light constructed of light weight, heavy wall cast aluminum alloy. Unit has patented spring mounted, porcelain mogul socket, and heat resistant lamp sealing gasket to provide maximum protection against shock, vibration, and moisture, to compensate for lamp tolerance variations, insuring snug fit. housing is tapped 3/4″ N.P.S. on center top.

Furnished completely assembled with cast aluminum guard and concealed wired with 14 gauge fiber glass insulated stranded wire. Designed for R-40 type, rough filaent, incandescent mogul base lamp, please inquire. Lamps sold separately.

Features Include:

  • Constructed of heavy wall, corrosion resistant cast aluminum alloy, with optional weather and saltwater resistant polyester powder coating.
  • Furnished with stainless steel hardware.
  • Equipped with patented spring mounted porcelain socket assembly, to absorb vibration.
  • Silicone gasket which helps to prevent moisture, saltwater, dust and dirt from entering housing.
  • Weight 5 1/2 lbs.
  • Height 12 1/2″ approx.
  • Length 7 1/2″ approx.
