Marine Lighting

PAR 56
Marine Light/Outdoor Type
NSN 6230-01-439-0149

Applications:

  • Fishing Boats
  • Ferries
  • Patrol Boats
  • All Dock Applications
  • Cranes
  • Tugboats
  • Towboats
  • Barges
  • Bridges
  • Many more suitable situations

MODEL 3011GN
PAR 56
Marine Light / Outdoor Type
NSN 6230-01-439-0149

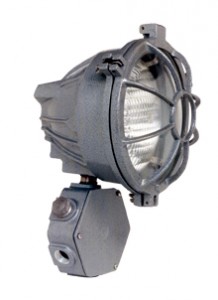

Circle-D’s Heavy Duty Marine Light is designed with 3 equally spaced bosses (120 degrees apart), blind tapped 3/8″-16 for solidly shoring to bulkhead or structural member of merchant vessel. Intended to resist pounding of heavy seas. Constructed of light weight heavy wall cast aluminum alloy. Lamp housing has a weatherproof clear lens cover, mounted in a hinged ring. Three evenly spaced wing nut clamps secure lens ring against a resiliant sealing gasket, lamp housing interior and lamp are thus protected from weather and dirt.

Cast aluminum hexagon junction box connects to lamp with a stainless steel 3/4″ close nipple. Unit is furnished complete, wired to the junction box, with guard. May be used with or without guard.

Designed for PAR 56 lamp type, please inquire. Lamps sold separately.

Features Include:

  • Constructed of heavy wall, corrosion resistant cast aluminum alloy, with optional weather and saltwater resistant polyester powder coating.
  • UL Listed, suitable for wet locations.
  • Furnished with stainless steel hardware.
  • Weatherproof clear lens cover, mounted in a hinged guard, secured with three evently spaced wing nut clamps is cushioned against a silicone gasket which helps to prevent moisture, saltwater, dust and dirt from entering into housing.
  • Silicone gasket which helps to prevent moisture, saltwater, dust and dirt from entering housing.
  • Weight 8 1/2 lbs.
  • Height 15 1/2″
  • Length 9 1/2″
