Marine Lighting

PAR 56
Marine Lights/Outdoor Type Super Rugged
NSN 6220-01-387-6332

Applications:

  • Fishing Boats
  • Ferries
  • Patrol Boats
  • All Dock Applications
  • Cranes
  • Tugboats
  • Towboats
  • Barges
  • Bridges
  • Many more suitable situations

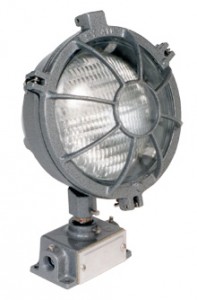

MODEL 3011 or 3011/12V
PAR 56
Marine Lights/Outdoor Type Super Rugged
NSN 6220-01-387-6332

Designed for use on Merchant Vessels this Super Rugged fixture meets the requirements of the U.S. Coast Guard. Constructed of light weight, heavy wall cast aluminum alloy with weather and saltwater resistant polyester powder coating. Stainless steel hardware used throughout. The lamp housing has a weatherproof clear lens cover which is mounted in a hinged guard. Three evenly spaced wing nut clamps secure the hinged guard against a resiliant sealing gasket made of silicone which protects lamp housing interior and lamp from weather, saltwater and dirt.

Unit is furnished complete, wired to junction box and is supplied with a 3/4″ NPT swivel mounting arm with lock screw, for horizontal and vertical positioning. May be used with or without guard.

Designed for PAR 56 lamp type, please inquire. Lamps sold separately.

Features Include:

  • Constructed of heavy wall, corrosion resistant cast aluminum alloy, with optional weather and saltwater resistant polyester powder coating.
  • UL Listed, suitable for wet locations.
  • Furnished with stainless steel hardware
  • Lamp is cushioned and protected inside by three stainless steel spring clips.
  • Weatherproof clear lens cover, mounted in a hinged guard, secured with three evently spaced wing nut clamps is cushioned against a silicone gasket which helps to prevent moisture, saltwater, dust and dirt from entering into housing.
  • Weight 8 1/2 lbs. approx.
  • Height 14″ approx.
  • Length 9 1/2″ approx.
